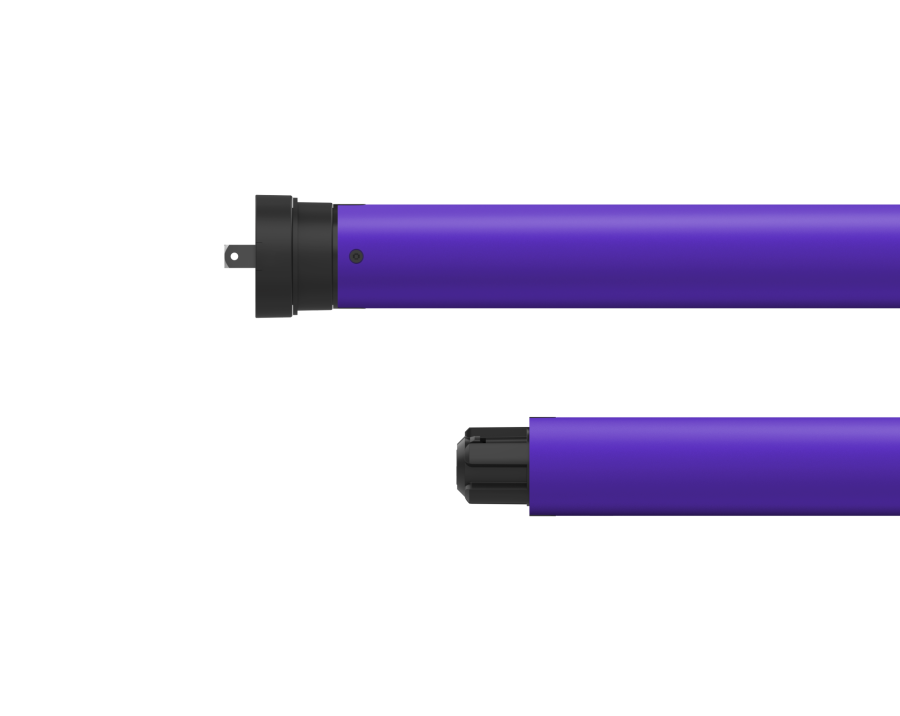

45mm DC tubular motor -NTY
Wide voltage: 100-240V
Built-in smart module
without thermal protection limit
Product feature
Input AC100V-240V
DC 24V drive, without thermal protection limit

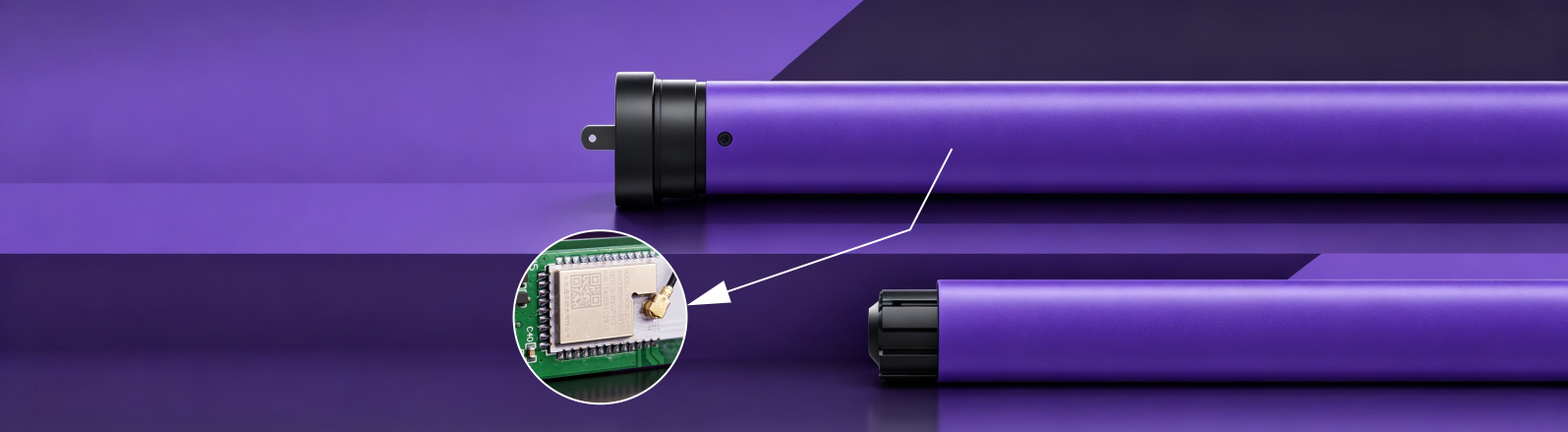

Built-in smart module
Directly to Smart Home
-
Precise Limit Setting
-
Stall Protection
-
Gently Lift To Up Blinds
-
Down Fabric Finishing
-
Adopting plum output shaft structure design,no slip
-
Enhanced copper heat sink design
5 year warranty
Long warranty
Quality assurance
After-sales worry-free
-
Down Fabric Finishing
-
Adopting plum output shaft structure design,no slip
-
Enhanced copper heat sink design
Product parameter
D10656
K45-3ER-20-12/17/26 tubular motor X-NTY
20N.m 12/17/26rpm 100W AC100-240V 50/60Hz 650mm 2.0Kg
D10666
K45-3ER-40-12/17 tubular motor X-NTY
40N.m 12/17rpm 130W AC100-240V 50/60Hz 650mm 2.0Kg
D10676
K45-3ER-50-12 tubular motor X-NTY
50N.m 12rpm 130W AC100-240V 50/60Hz 650mm 2.0Kg
Noise index(db)
28.6

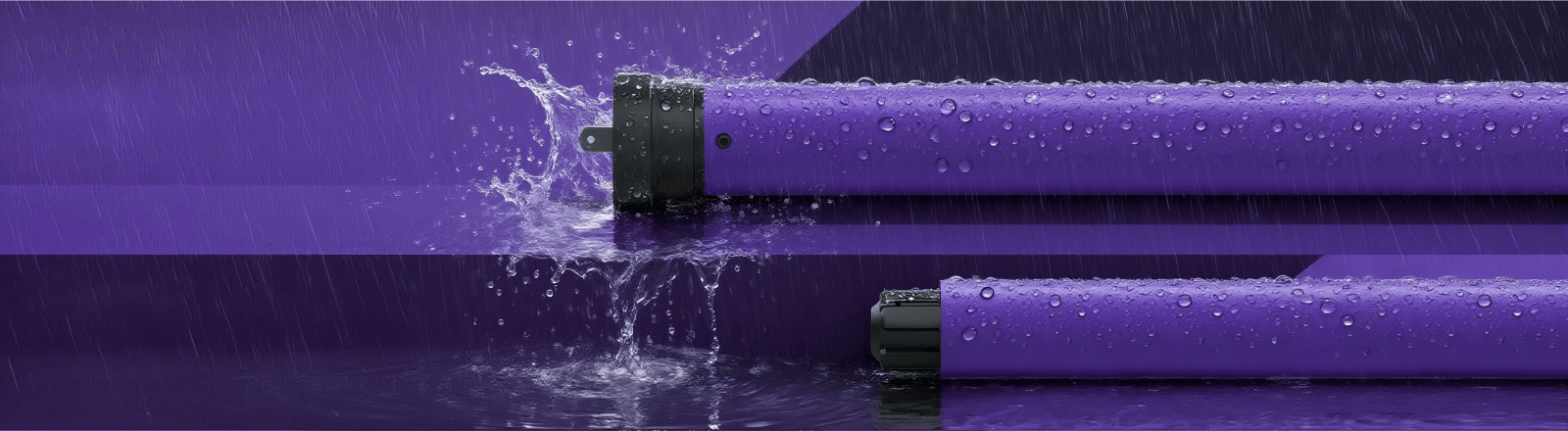

Protection level(IP)
IP65
QTY/CTN (PCS)
10

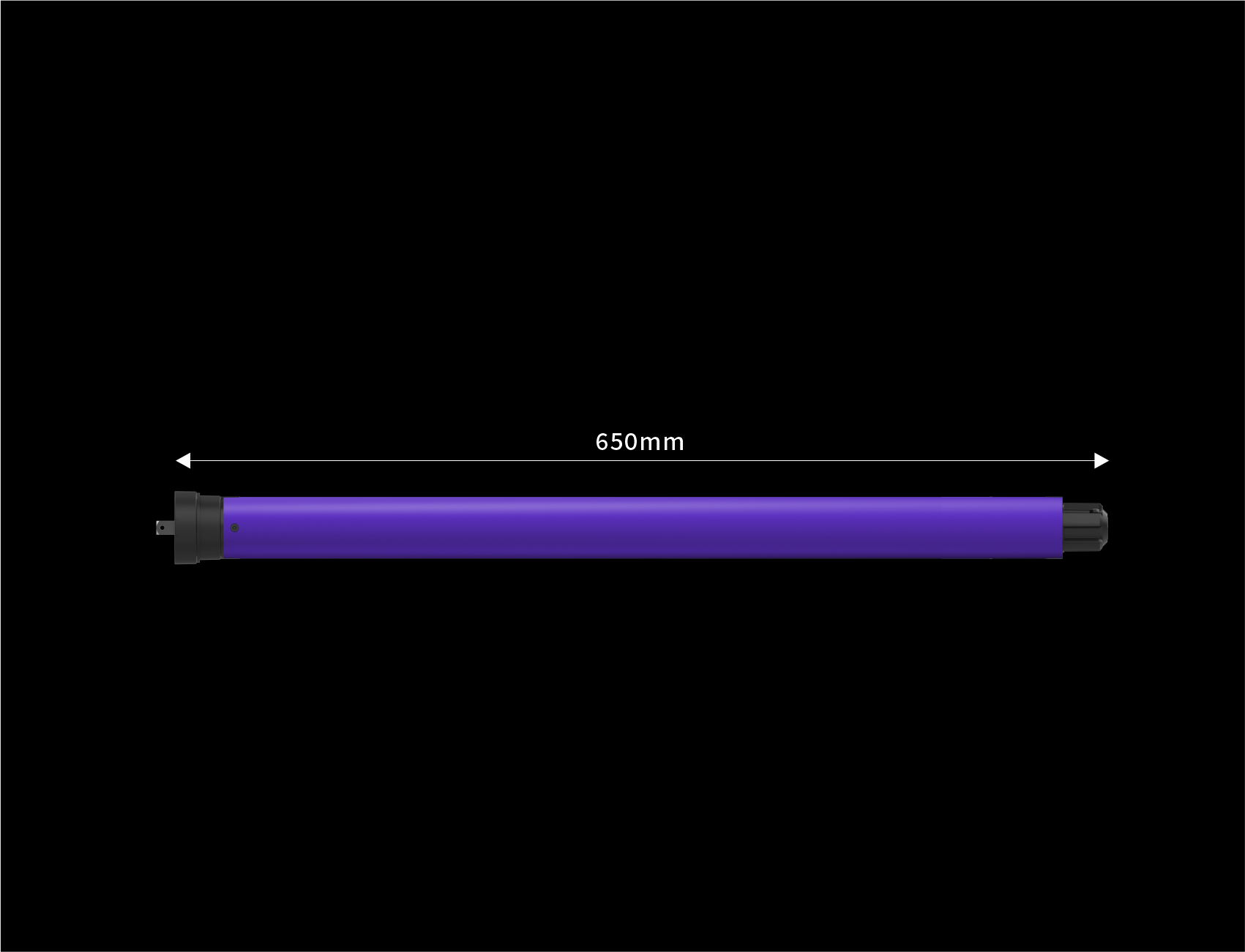

Product size
100% Full Test On Production Line
Noise test
Performance test
High voltage test
Appearance inspection
Torque test
Grounding test
Voice control test
Network connection test
Operate video
-
NOVO K45 DC Smart Tubular Motor
Solutions
Tubular Motor
The electric roller blind is composed of a tubular motor, sunshade fabric and other accessories (such as tubes, etc.).
The motor has low noise, simple and convenient limit adjustment, and accurate and reliable limit control. It can stop at any position in the middle. There are many control options, including radio remote control (single control, group control, and master control functions) and wall wired switch control. Easy to operate and works quietly and smoothly.
Accessories
-
D20606/D20506
Ф65 crown/Ф65 adapt wheel (cinquefoil）
-
D20607/D20509
Ф90-50 crown/Ф90 adapt wheel（cinquefoil）
-
D20621/D20622
Crown-φ63 groove tube/Adapt wheel-φ63 groove tube
-
D20628/D20627
φ85 crown/φ85 adapt wheel
-
D20629/D20630
φ60 octagonal crown/φ60 octagonal adapter wheel
-
D20635/D20636
φ70 octagonal crown/φ70 octagonal adapter wheel
-
D20623
adapt wheel-φ55 tube
-
D20629/D26172
φ60 octagonal crown/60 longer octagon adapt wheel
-
D20651/D20652
φ70 zip screen crown/φ70 zip screen drive
-
MH40091
Φ43 drive
-
D20608
Ф90-60 crown
Product application
NOVO has always adhered to the route of independent product R&D, and technical patent inventions
and is committed to creating more beautiful products that integrate quality, technology and art.
Light Roman blind
Roman blind
Roller blind
Shangri-laBlind
